Azure DevOps Pipeline Tutorial: Step-by-Step Guide [2025]

Azure Pipelines, part of Azure DevOps, is Microsoft’s cloud-based service for automating the build, test, and deployment of code. It powers Continuous Integration (CI) and Continuous Delivery (CD) by combining these practices into a single, flexible pipeline.

In this tutorial, we’ll cover:

• What Azure DevOps pipelines are and how they work

• Step-by-step instructions to create a pipeline (both Classic UI and YAML)

• Advanced features such as multi-stage pipelines, approvals, and gates

• How to integrate code quality tools (e.g., SonarQube, CodeAnt.ai)

• Common pipeline errors and fixes

Whether you’re new to Azure Pipelines or looking to migrate from Classic to YAML, this guide will help you set up efficient, reliable CI/CD workflows.

What Is an Azure DevOps Pipeline?

An Azure DevOps pipeline is a workflow that automates the process of building, testing, and deploying applications. It connects your source code repository to build/test servers and deployment targets, running a defined series of steps whenever changes are committed.

Key benefits:

• Supports all major languages and platforms (Java, .NET, Python, Node.js, containers, etc.)

• Deploys to diverse targets such as VMs, Kubernetes clusters, and cloud services

• Ensures consistent, repeatable software delivery with minimal manual intervention

Figure 1: Azure DevOps Pipeline Workflow

In short: pipelines let teams move from code commit → tested build → deployed app automatically, ensuring faster releases and fewer errors.

CI/CD Explained in Azure DevOps Pipeline

In DevOps (and especially Azure Pipelines), CI/CD refers to:

• Continuous Integration (CI): Developers frequently merge code into a shared repo. Azure Pipelines automatically runs builds and unit tests for each push or pull request, catching integration bugs early and maintaining code quality.

• Continuous Delivery (CD): The outputs from CI are deployed to downstream environments (e.g., staging, production). Deployments can be automated and safeguarded with approvals, checks, or policies.

Together, CI/CD creates a pipeline where code flows smoothly from development → production, giving teams faster feedback and safer releases.

Classic vs. YAML Pipelines

Azure DevOps offers two ways to define pipelines. Both deliver CI/CD, but they differ in approach and maintainability.

Classic Pipelines (UI-based)

• Created via the Azure DevOps web portal with a graphical editor.

• Typically split into Build pipelines (compile/test) and Release pipelines (deploy).

• Configured through drag-and-drop stages and tasks.

• Stored inside Azure DevOps (not versioned in your repo).

• Status: Legacy. Still supported, but Microsoft recommends moving to YAML.

YAML Pipelines (Pipeline-as-Code)

• Defined in a YAML file (azure-pipelines.yml) stored in your repo.

• Configuration is version-controlled, reviewed, and branched alongside your code.

• Supports multi-stage pipelines (build, test, deploy in one definition).

• Easier to reuse, share, and track changes.

• Status: Recommended for all new projects. Migration tools exist for moving Classic → YAML.

Figure 2: Hierarchy of YAML File

Bottom line:

• Classic = visual, easier for beginners, but limited in portability.

• YAML = configuration-as-code, future-proof, flexible, and preferred for modern DevOps teams.

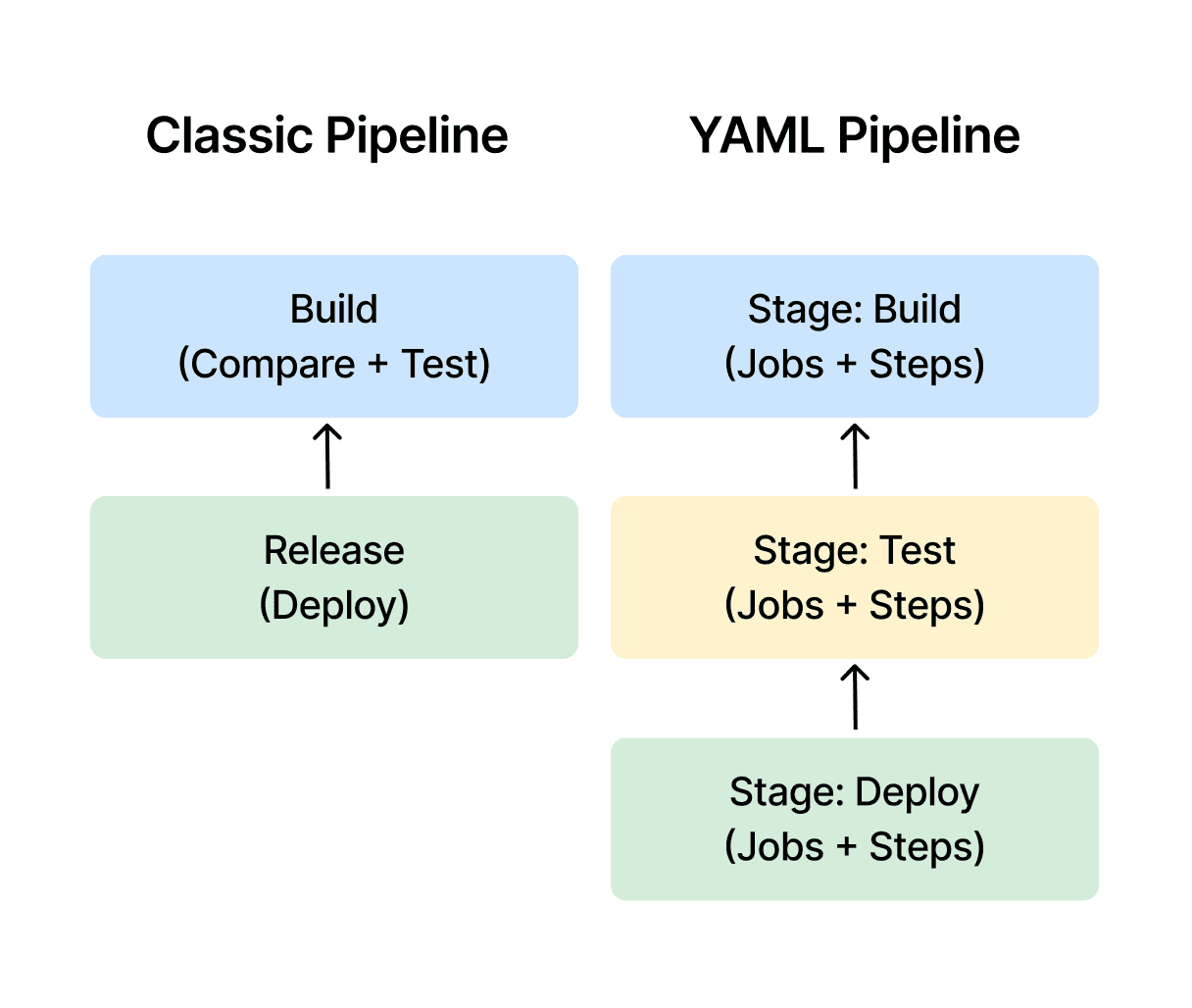

Figure 3: Classic vs. YAML Pipelines in Azure DevOps

How to Create a New Pipeline in Azure DevOps

Setting up a pipeline in Azure DevOps can take just a few minutes. Below is a step-by-step guide to get you started, whether you prefer the Classic UI or YAML pipelines.

Prerequisites: Setting Up Your Project

Before you build a pipeline, make sure you have:

• An Azure DevOps organization and project: You can sign up for free and create a project under the Pipelines section.

• A source code repository: Azure Pipelines integrates with Azure Repos, GitHub, GitLab, Bitbucket, or other Git/SVN repos. Ensure your code is in a supported repo.

• Repo connections/authorization: If using GitHub or an external repo, set up service connections or OAuth so Azure DevOps can access it.

• A build agent: By default, Azure Pipelines provides Microsoft-hosted agents (Linux, Windows, Mac). For specialized requirements, you can configure a self-hosted agent.

Once these basics are ready, you can create your first pipeline.

Step 1: Start the Pipeline Wizard

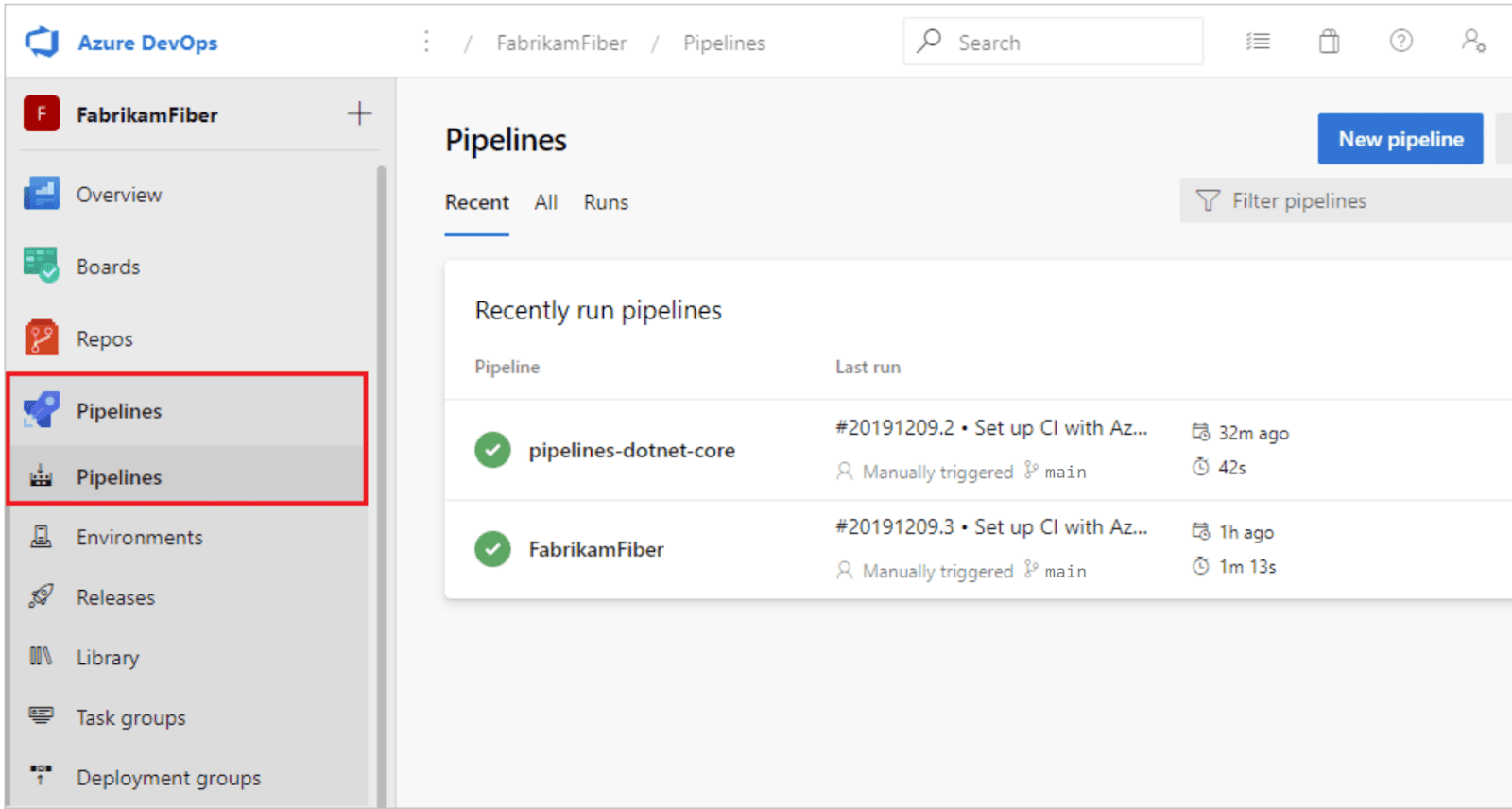

1. In your Azure DevOps project, go to Pipelines → New Pipeline.

2. Select where your code is hosted (e.g., Azure Repos, GitHub, Bitbucket).

3. If prompted (for external repos), authorize Azure DevOps via OAuth and pick the repository to connect.

Step 2: Choose a Template

• Azure Pipelines analyzes your repo and suggests a YAML template.

• For example:

  • A Maven project → suggests a Maven build template.

  • A .NET project → suggests ASP.NET Core template.

• You can accept a template, customize it, or start with a blank pipeline.

Step 3: Review & Run the Pipeline

• The YAML editor opens with a generated pipeline (azure-pipelines.yml).

• Review the tasks, edit if needed, then click Save and Run.

• Azure DevOps commits the YAML to your repo and triggers the first run.

You’ll see logs in real-time: restoring dependencies, building code, running tests, and producing artifacts.

If the run succeeds → pipeline setup is complete.

If it fails → check logs, fix errors, and rerun.

Step 4: Edit and Rerun

• To update the pipeline, edit the YAML file in your repo (via DevOps editor or local editor + commit).

• Pipelines auto-trigger on pushes or PRs (depending on the YAML config).

• You can create branch-specific pipelines by adding/revising YAML files per branch.

Pro tip: Azure DevOps keeps a run history for comparison and troubleshooting.

Classic UI vs YAML

If you prefer a visual start, click Use the classic editor during setup:

• Classic UI: Drag-and-drop tasks in a designer, split into Build & Release pipelines.

• YAML: Single file stored in repo, version-controlled, portable, and recommended by Microsoft for new projects.

Classic is beginner-friendly, but YAML is future-proof and better suited for modern DevOps practices.

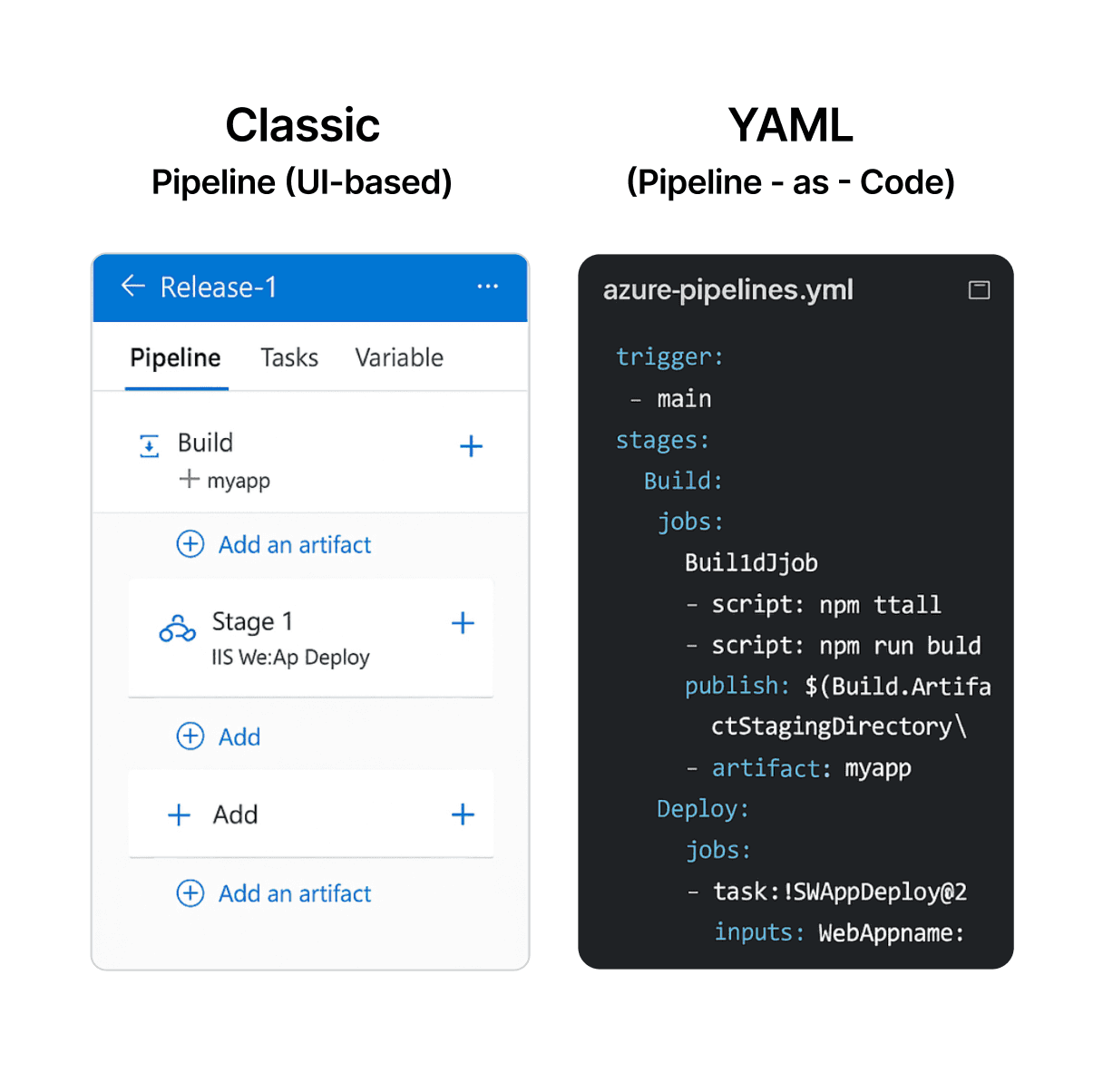

Figure 4: Classic vs YAML Pipelines in Azure DevOps

Adding Tasks and Jobs

Pipelines consist of jobs (groups of steps on an agent) and tasks (individual actions).

In YAML:

jobs:
- job: BuildJob
  displayName: "Build Job"
  pool:
    vmImage: 'ubuntu-latest'
  steps:
  - script: echo "Restoring project dependencies..."
    displayName: "Restore Dependencies"
  - script: echo "Running unit tests..."
    displayName: "Run Unit Tests"

This runs on an Ubuntu agent and executes two placeholder commands. Replace echo with real build/test tools (npm, dotnet, Maven, etc.). Azure DevOps also provides prebuilt tasks like DotNetCoreCLI@2, PublishTestResults@2, etc.

Figure 5: YAML Pipeline

In Classic UI

• Use the visual designer → add tasks like “Publish Build Artifacts” or “Azure App Service Deploy.”

• Classic splits build (produce artifacts) and release (deploy artifacts).

• YAML pipelines unify both with multi-stage definitions.

Parallel Jobs & Dependencies:

• YAML supports multiple jobs per stage (frontend/backend, Linux/Windows builds, etc.).

• Jobs in the same stage run in parallel unless you specify dependencies.

Figure 6: Azure DevOps Pipeline Lifecycle

Feel free to experiment by editing your YAML in Azure DevOps and using the built-in snippet library (the editor has an “insert snippet” functionality for common tasks and syntaxes). Azure DevOps will also validate the YAML and catch syntax errors.

Creating Pipelines Using YAML

YAML pipelines are the modern, recommended way to define CI/CD in Azure DevOps. Instead of configuring builds through a UI, you describe your workflow in a version-controlled YAML file (azure-pipelines.yml). This “pipeline as code” approach makes pipelines more portable, traceable, and easier to review.

Figure 7: YAML Pipeline Hierarchy

YAML Basics

A few things to know before writing your first pipeline file:

• Indentation matters: YAML is whitespace-sensitive. Always use spaces (never tabs). A single misaligned space can break the pipeline with errors like bad indentation of a mapping entry. Use Azure DevOps’ YAML editor or a linter (e.g., VS Code extension) to avoid mistakes.

• Pipeline structure: At minimum, a YAML file defines a trigger and jobs/steps.

trigger:
  branches:
    include: [ main ]
pool:
  vmImage: 'ubuntu-latest'
steps:
- script: echo "Hello World"

• Editor support: In the Azure DevOps portal, you can open the YAML editor and use the “Show assistant” panel to insert tasks (e.g., Publish Artifact, Node Installer). This speeds up writing YAML correctly.

• Validation: Validate YAML locally with the Azure Pipelines VS Code extension or az pipelines validate CLI command before committing.

trigger:
  branches: [ main ]
variables:
  - name: MyVar
    value: 123
stages:
- stage: Build
  jobs:
  - job: BuildJob
    steps:
    - script: echo "Compile..."
- stage: Deploy
  dependsOn: Build
  jobs:
  - job: DeployJob
    steps:
    - script: echo "Deploy..."

• Pipeline Structure: At minimum, an azure-pipelines.yml has a trigger (which branch or event starts the pipeline) and jobs or stages with steps. For example:

Here’s what’s happening:

• Trigger → Pipeline runs on commits to main.

• Stages → Two stages: Build → Test (Test depends on Build success).

• Tasks → Build produces artifacts; Test consumes them and publishes results.

• Hosted agent → Uses Microsoft’s Ubuntu VM for execution.

Sample YAML Pipeline File

Let’s look at a sample YAML pipeline. This example will illustrate a CI pipeline with two stages: Build and Test. The Build stage will compile the code (placeholder steps shown), and if successful, the Test stage will run tests.

trigger:
- main    # run on pushes to main
pool:
  vmImage: 'ubuntu-latest'
stages:
- stage: Build
  displayName: "Build Stage"
  jobs:
  - job: BuildJob
    displayName: "Compile and Package"
    steps:
    - script: echo "Building the project..."   # Placeholder build command
      displayName: "Compile Source"
    - script: echo "Packaging artifacts..."
      displayName: "Package Artifacts"
    - task: PublishBuildArtifacts@1           # Publish outputs for later stages
      inputs:
        pathToPublish: $(Build.ArtifactStagingDirectory)
        artifactName: drop
- stage: Test
  displayName: "Test Stage"
  dependsOn: Build        # run only if Build stage succeeded
  jobs:
  - job: TestJob
    displayName: "Run Tests"
    steps:
    - script: echo "Running unit tests..."    # Placeholder test command
      displayName: "Execute Unit Tests"
    - task: PublishTestResults@2             # Publish test results to pipeline
      inputs:
        testResultsFiles: '**/TEST-*.xml'
        mergeTestResults: false

In this YAML:

• The pipeline triggers on commits to the main branch.

• There are two stages: Build and Test. The Test stage has dependsOn: Build, so it will only run after a successful Build.

• The Build stage’s job prints messages to simulate build steps and then uses the PublishBuildArtifacts@1 task to store artifacts (so they can be used in later stages).

• The Test stage job simulates running tests (printing a message) and then uses PublishTestResults@2 to upload any test result files (in JUnit/XML format, as an example) into Azure DevOps.

• We used a Microsoft-hosted Ubuntu agent (vmImage: ubuntu-latest) for simplicity.

This is just an example…

A real pipeline would have actual build commands (e.g., mvn package or dotnet build) and likely more configuration. But this shows the general layout with stages, dependencies, and tasks. Azure Pipelines supports much more, like multiple jobs per stage, conditional execution, parameters, templates, etc., but those are advanced topics beyond this tutorial’s scope.

You can take this YAML and adjust it to your project’s needs. For instance, if you’re building a Node.js app, replace the script steps with npm install && npm run build && npm test. The power of YAML is that you can include any Bash/PowerShell commands or use predefined tasks for common actions.

Best Practices for YAML Pipelines

Defining pipelines as code unlocks better maintainability. Here are some best practices to consider:

• Keep your pipeline file in version control alongside code. (YAML pipelines can be checked into source control and even versioned alongside your app code)

• Use variables and templates for reusable patterns (e.g., shared test jobs).

• Separate build, test, and deploy stages for clarity and control.

• Combine Bash/PowerShell scripts with predefined tasks (like DotNetCoreCLI@2, PublishTestResults@2) for flexibility.

• Use dependsOn to enforce execution order and conditional logic.

By following these practices, you’ll keep your pipeline definitions clean, secure, and easy to manage as they grow.

Advanced Pipeline Features

Once you have basic pipelines running, Azure DevOps provides advanced features to optimize and control your CI/CD workflow. Here we’ll discuss multi-stage pipelines, approvals/checks, and integrating external tools for quality and security.

Multi-Stage Pipelines

A multi-stage pipeline is simply a pipeline that defines more than one stage (sequential group of jobs). We saw an example of this in the YAML sample where we had separate Build and Test stages. Multi-stage pipelines are powerful because they allow you to model your CI/CD process end-to-end in one workflow (e.g., Build -> Test -> Deploy -> Post-deploy test, etc.), with clear separation and control at each stage.

Why it’s useful

• Separation of concerns: Clear boundaries between build, test, and deploy.

• Quality gates: Enforce checks/approvals between stages.

• Visibility: See exactly where the run is (e.g., “Deployed to Staging, awaiting Prod approval”).

• Risk control: Add optional stages (e.g., load tests, rollback).

Classic vs YAML

• Classic: Build pipeline produces an artifact → release pipeline consumes it.

• YAML: Multi-stage is native, everything in one azure-pipelines.yml, versioned with your code.

Typical flow

• Build: compile, unit tests, publish artifacts

• Test: deploy to test env, run integration tests

• Staging: deploy to staging, run validations

• Production: deploy to prod (often requires approval)

Tip: Use dependsOn and condition to control sequencing/branch filters (e.g., only deploy to prod from main).

Pipeline Approvals and Checks

In enterprise scenarios, you often need control over when a deployment happens or require someone to review/approve before promoting code to the next stage. Azure Pipelines supports this through approvals and checks on environments and stages.

1. Environment Approvals

If you deploy to an Environment (an Azure Pipelines concept representing a target like “Staging” or “Production”), you can configure an approval on that environment. For example, you can require that before a stage deploying to “Production” runs, a designated team member (or a group) must manually approve the run.

In YAML, you set your deployment job to target an environment, and in the environment’s security settings, set an approval rule. Then when the pipeline reaches that stage, it will pause and wait for approval in the UI.

2. Manual Intervention Task

Another way is using the Manual Validation task within a stage. This is a special task that pauses the pipeline and waits for a person to resume it. You can use it to perform manual tests or reviews at a certain point.

For instance, after deploying to staging, a manual validation task can halt the pipeline until QA signs off, then the pipeline continues to production deploy. As an example, Azure Pipelines documentation shows using a manual validation task that requires a user to validate before proceeding. This task can be configured with a timeout and specific instructions for the approver.

3. Checks (Gates)

Azure DevOps also allows automated checks, e.g., querying a monitoring system to see if an environment is healthy before deploying. These are more advanced but can be set up as “Gates” that continuously evaluate external conditions during a pipeline pause (supported in classic releases and YAML environments).

Setting up approvals and checks introduces human control (or external feedback) into an otherwise automated pipeline, which is important for compliance or risk management. For example, you might enforce that all production deployments require sign-off from a tech lead or that a security scan must pass (via an automated check) before code can progress.

Implementing an Approval in YAML: Suppose we want an approval before deploying to production. We could define an environment for Prod and assign an approval to it. In YAML, the deploy stage might look like:

- stage: DeployProd
  jobs:
  - deployment: DeployProdJob
    environment:
      name: Prod    # environment that has an approval configured
      resourceType: VirtualMachine  # or Kubernetes, etc., depending on target
    strategy:
      runOnce:
        deploy:
          steps:
          - script: echo "Deploying to Production..."

Configure the approval on the Prod Environment (Project Settings → Environments), not in YAML.

When to use

• Promotion to Production

• Change control windows

• Compliance or security policies

Integration with External Tools

A pipeline isn’t just about compiling code, it’s an opportunity to enforce quality and security by integrating analysis tools. Azure DevOps supports a wide range of extensions and tasks to incorporate external tools into your pipeline.

Two common categories are:

• Static code analysis (for code quality/security)

• Artifact scanning or deployment verifications.

One of the most impactful integrations is CodeAnt.ai, an AI-driven code health platform that acts as a code reviewer, security scanner, and quality gate, all inside your Azure Pipeline.

1. What it checks: CodeAnt.ai goes beyond basic linters. It analyzes style, complexity, duplication, secrets, IaC misconfigurations, and even potential vulnerabilities like SQL injections, covering 30+ languages and 30,000+ rules.

2. Why it matters: Instead of juggling multiple tools (Sonar, SAST scanners, coverage reporters), CodeAnt.ai consolidates them into one AI-powered step. It reduces false positives, suggests fixes, and can automatically block code merges if critical issues are detected. This means less noise and more trust in your CI/CD.

3. How to integrate:

   • Install the CodeAnt.ai extension from the Azure Marketplace.

(https://marketplace.visualstudio.com/items?itemName=codeantai.codeant-azure-devops-extension)

• Add the provided task or YAML snippet to your pipeline.

• Store your CodeAnt access token as a secure pipeline variable.

• On every PR or build, CodeAnt runs automatically, posting results in your dashboard (or even directly as PR comments).

Why integrate external tools at all?

Think of your pipeline as the last defense before production. By adding tools like CodeAnt.ai (or other linters, scanners, validators), you shift quality and security left, catching issues before they’re deployed. Azure DevOps Pipelines’ extensibility means if a tool has a CLI or API, you can make it part of your CI/CD.

Tip: For example, CodeAnt’s documentation provides a YAML step that downloads a scan script and runs an analysis on your repo on each build. With this configured, every push or PR triggers a CodeAnt security and quality scan automatically.

Related links: https://www.codeant.ai/blogs/azure-devops-tools-for-code-reviews

Common Pipeline Errors & Quick Fixes

Even solid pipelines hit snags. Here are frequent issues and how to resolve them fast.

1) YAML indentation/syntax errors

• Symptoms: bad indentation of a mapping entry, missing colon errors.
  Fix: Use spaces (no tabs), follow exact nesting, validate with VS Code Azure Pipelines extension or az pipelines validate. For multi-line scripts (|), indent lines one level deeper than the key.

2) Service connection authorization

• Symptoms: “The service connection does not exist or has not been authorized for use.”

• Fix: Project Settings → Service connections → open the connection → Authorize for use (or grant your pipeline access). Double-check the exact connection name in YAML (not subscription name/ID).

3) External tool misconfiguration

• Symptoms: Tool step fails early (e.g., 401/403, “token missing”).

• Fix: Provide required secrets/variables (e.g., ACCESS_TOKEN) via Pipeline variables or Library Variable Groups; reference them in task env:. Ensure the Marketplace extension is installed and endpoints are configured (e.g., SonarQube server).

4) Agent image & dependency mismatches

• Symptoms: command not found, wrong runtime version, OS-specific failures.

• Fix: Switch vmImage (e.g., windows-latest vs ubuntu-latest) or install required versions using tool installer tasks (NodeTool@0, UsePythonVersion@0, DotNetCoreCLI@2 with sdk). Check agent image software lists if in doubt.

5) Permissions & scope (restricted projects)

• Symptoms: Tasks fail to access repos, environments, or variable groups.

• Fix: Review pipeline permissions, environment security, and variable group linking (allow access for all pipelines or specific ones).

Debugging tip: Azure Pipelines logs are verbose, expand the failed step, enable system diagnostics if needed, and copy exact errors into searches (Docs, Stack Overflow) for known fixes

Advanced Deployment Patterns & Pipeline Optimization

Once your Azure DevOps pipelines are functional and quality-gated, the next challenge is scaling and optimizing them for speed, safety, and reusability. Azure Pipelines supports deployment strategies like blue-green and canary, reusable templates for consistency, and caching/parallelization to reduce build times.

Deployment Strategies: Blue-Green & Canary

Modern DevOps pipelines often go beyond “deploy once” by using strategies that minimize downtime and risk.

Blue-Green Deployment

• Concept: Run two production environments (Blue and Green). One is live (serving users), the other is idle.

• Process: Deploy to the idle environment, validate, then flip traffic to it. If something fails, roll back by flipping traffic back.

• Azure setup: Use Azure App Service deployment slots or Azure Front Door/Traffic Manager for routing. Pipelines target the staging slot, then a slot swap promotes it to live.

Canary Deployment

• Concept: Roll out changes to a small subset of users before full rollout.

• Process: Deploy to, say, 5–10% of nodes/users, monitor, then gradually increase to 100%.

• Azure setup: Use App Service deployment slots, AKS (Kubernetes) with canary ingress rules, or Feature Flags (Azure App Configuration + LaunchDarkly/AzFeatureFlags).

Why it matters: These strategies reduce the blast radius of failures and are essential for high-availability systems.

YAML snippet (simplified blue-green on App Service)

- stage: DeployStaging
  jobs:
  - deployment: DeployToStaging
    environment: staging
    strategy:
      runOnce:
        deploy:
          steps:
          - task: AzureWebApp@1
            inputs:
              azureSubscription: MyServiceConnection
              appName: my-webapp
              slotName: staging
              package: $(Pipeline.Workspace)/drop/*.zip

- stage: SwapToProduction
  dependsOn: DeployStaging
  jobs:
  - job: Swap
    steps:
    - task: AzureAppServiceManage@0
      inputs:
        azureSubscription: MyServiceConnection
        Action: 'Swap Slots'
        WebAppName: my-webapp
        SourceSlot: staging
        ResourceGroupName: my-resource-group

Templates & Parameters for Reuse

Large teams often create dozens of pipelines. Instead of copy-pasting YAML, templates let you centralize logic.

Types

• Stage templates: define a reusable stage (e.g., Build & Test).

• Job templates: reusable jobs (e.g., Node build job).

• Step templates: common sequences (e.g., Install dependencies + run tests).

Parameters

• Pass values into templates (e.g., language, version, app name).

• This enables “one template, many projects.”

Example: step template (build-test.yml)

parameters:
  - name: buildCmd
    type: string
  - name: testCmd
    type: string

steps:
- script: ${{ parameters.buildCmd }}
  displayName: "Build"
- script: ${{ parameters.testCmd }}
  displayName: "Test"

Pipeline Performance: Caching & Parallelization

Slow pipelines kill developer productivity. Azure Pipelines provides several levers to speed things up.

Caching

• Cache dependencies (npm, Maven, Gradle, NuGet).

• Example (npm cache):

- task: Cache@2
  inputs:
    key: 'npm | "$(Agent.OS)" | package-lock.json'
    path: $(npm_config_cache)
    restoreKeys: |
      npm | "$(Agent.OS)"

• This ensures build reuse dependencies instead of re-downloading.

Parallel Jobs & Matrix Builds

• Matrix builds: Run the same job against multiple configurations (e.g., Node 14/16/18 or Linux/Windows).

• Parallel jobs: Split frontend/backend builds into separate jobs that run at the same time.

YAML matrix example

jobs:
- job: TestMatrix
  strategy:
    matrix:
      linux_node14:
        imageName: 'ubuntu-latest'
        nodeVersion: 14
      linux_node16:
        imageName: 'ubuntu-latest'
        nodeVersion: 16
  pool:
    vmImage: $(imageName)
  steps:
  - task: NodeTool@0
    inputs:
      versionSpec: $(nodeVersion)
  - script: npm install && npm test
    displayName: "Run tests on Node $(nodeVersion)"

Key Takeaways

• Use blue-green or canary deployments to reduce production risk.

• Adopt templates & parameters for scalable, DRY pipeline management.

• Optimize pipelines with caching & parallelization to keep builds fast and dev teams productive.

Pipeline Security & Compliance

Security is not an add-on in DevOps pipelines, it’s a core requirement. Azure Pipelines provides built-in features for protecting secrets, enforcing compliance, and embedding DevSecOps practices directly into your CI/CD workflow. This ensures your team moves fast without introducing unnecessary risk.

Secret Management with Azure Key Vault

Hard-coding secrets (API keys, DB passwords, tokens) into pipelines is one of the most common security mistakes. Instead, integrate with Azure Key Vault:

• Store secrets centrally in Key Vault.

• Link Key Vault to pipelines using a service connection.

• Reference secrets as variables in your YAML pipeline.

YAML example (Key Vault integration):

variables:
- group: KeyVaultSecrets   # Variable group linked to Key Vault

steps:
- script: echo "Using secret value: $(MySecret)"
  displayName: "Access secret"

This way, secrets are injected securely at runtime and never exposed in logs or code.

Secure Variables & Access Controls

• Mark variables as “secret” in Azure Pipelines → values are masked in logs.

• Restrict pipeline permissions → ensure only trusted pipelines can use sensitive service connections.

• Use Managed Identities when authenticating with Azure resources → avoids handling raw credentials.

Compliance with Policies & Gates

Enterprises often need to prove that deployments meet certain policies (audit, regulatory, or internal governance). Azure Pipelines supports this via checks and compliance gates:

• Policy enforcement: Require all code changes to pass PR policies (branch protections, mandatory reviews, build validations).

• Automated compliance scans: Add tools like CodeAnt.ai or SonarQube to run SAST (static application security testing), dependency scans, and code quality checks on each build.

• Environment checks: Configure gates that run compliance scripts (e.g., validate infrastructure against CIS benchmarks) before approving deployment.

DevSecOps Best Practices in Pipelines

1. Shift left: Run security scans early (during build/test) so issues are caught before deployment.

2. Scan dependencies: Use dependency scanning (e.g., npm audit, Trivy, or CodeAnt’s built-in scanner).

3. Automate security testing: Integrate SAST/DAST tools as tasks in the pipeline.

4. Audit everything: Azure Pipelines keeps detailed run logs → export these for compliance reporting.

5. Least privilege: Limit who can approve deployments to production environments.

Tip: CodeAnt AI integrates into Azure Pipelines to auto-scan PRs and builds for vulnerabilities. Unlike traditional linters, it applies AI to detect issues in context (SQL injection, secret leaks, insecure configs) and can act as a quality gate that blocks merges until critical issues are fixed.

Why It Matters

By embedding security and compliance into your pipelines:

• Developers ship faster without fear of exposing secrets or missing checks.

• Security teams gain visibility via automated scans and audit trails.

• Organizations meet compliance requirements without slowing delivery.

Security isn’t a final checkpoint, it’s a guardrail woven throughout your CI/CD pipeline.

Pipeline Monitoring & Continuous Feedback

A pipeline doesn’t end when code is deployed, success depends on what happens after release. Monitoring and feedback loops ensure teams catch issues early, measure performance, and continuously improve both the product and the pipeline.

Observability with Azure Monitor & Application Insights

Azure integrates monitoring directly into pipelines:

• Azure Monitor: Collects metrics and logs across infrastructure (VMs, AKS, App Services).

• Application Insights: Provides deep telemetry on application performance (response times, exceptions, user flows).

• Log Analytics: Lets you query logs with Kusto Query Language (KQL) for custom insights.

YAML example (send telemetry on deploy):

- task: AzureCLI@2
  inputs:
    azureSubscription: 'MyServiceConnection'
    scriptType: 'ps'
    scriptLocation: 'inlineScript'
    inlineScript: |
      az monitor app-insights component update \
        --app MyAppInsights \
        --set samplingPercentage=100

This can be used as part of a deployment job to configure monitoring automatically.

Feedback Loops in Pipelines

Monitoring data becomes powerful when it feeds back into development cycles:

• Fail fast: If a deployment increases error rates, alerts trigger and the pipeline can auto-roll back.

• Metrics as gates: Define quality thresholds (e.g., <1% error rate in staging) → if exceeded, block promotion to production.

• Issue tracking integration: Link Azure Monitor alerts to Azure Boards or GitHub Issues so developers immediately see problems tied to work items.

Example: A spike in failed login attempts → pipeline opens a work item tagged “Security Incident” → next sprint prioritizes remediation.

Dashboards & Reporting

Azure DevOps dashboards let teams visualize:

• Build and release success/failure rates.

• Deployment frequency.

• Mean Time to Recovery (MTTR).

• Test pass/fail trends.

You can combine pipeline data with Application Insights dashboards → giving leadership a real-time view of delivery health.

Continuous Improvement with DORA Metrics

Top-performing DevOps teams track DORA metrics inside their pipelines:

1. Deployment frequency

2. Lead time for changes

3. Change failure rate

4. MTTR (Mean Time to Recovery)

Azure Pipelines surfaces some of this data natively, and platforms like CodeAnt.ai extend this by providing AI-driven developer productivity and DORA dashboards. These metrics help answer: Are we deploying faster, safer, and recovering quicker than last quarter?

Why It Matters

Monitoring and feedback transform pipelines from a one-way conveyor belt into a learning system. Teams not only release software but also measure its impact, catch regressions early, and adapt processes continuously. This aligns with the heart of DevOps: shorter feedback loops, safer releases, and continuous improvement.

Conclusion and Next Steps

Azure DevOps Pipelines enable teams to automate build–test–deploy with speed and reliability. In this tutorial, we explored everything from YAML basics to multi-stage deployments, approvals, and external integrations. Most importantly, we saw how pipelines evolve from being “just automation” into quality guardians when paired with tools like SonarQube or CodeAnt.ai.

For engineering leaders, the payoff is twofold:

• Faster delivery (shorter cycles, fewer manual handoffs).

• Greater visibility (metrics, compliance, code health trends).

That’s what turns pipelines into a competitive advantage.

Next Steps

If you’re just starting out:

• Create a simple pipeline with Microsoft’s quickstarts.

• Begin migrating Classic pipelines to YAML.

• Add a basic quality gate (unit tests, coverage).

If you’re scaling up:

• Layer in multi-stage flows with approvals.

• Use Key Vault for secret management.

• Add caching, templates, and blue-green/canary strategies for performance and safety.

And if you’re ready to push beyond “good enough” CI/CD:

• Integrate AI-powered checks like CodeAnt.ai. It turns every PR into a secure, reviewed, and quality-scanned change, automatically.

• Track DORA metrics, developer productivity, and code health trends in one place.

Final Word

Pipelines aren’t “done” once they run successfully, they’re living systems that should improve as your team grows. Treat them as critical assets, refine them continuously, and use modern tools to take the heavy lifting off your developers.

👉 Ready to see what that looks like in practice? Try CodeAnt.ai free and experience how AI-powered code reviews inside Azure DevOps can cut review time, catch critical issues earlier, and boost confidence in every release.

P.S.- Install CodeAnt.ai from the Marketplace
